Merak
- 2800
-
Alternative Fuels -
Plastics Recycling -
Waste Wood Processing -
Paper & Product Destruction -
The Merak is the new star in the Lindner product family and sets new standards in terms of versatility, productivity and throughput. The innovative cutting system enables the shredder to be used universally, from coarse primary shredding to universal and secondary shredding, achieving output sizes ranging from 30 to 350 mm. The sophisticated drive concept with three transmission ratios (55 and 87 rpm) enables the shredding of a wide range of materials at the optimum operating point, ensuring increased efficiency.
DownloadsEnquire about Merak today
Make an enquirySHREDDING AT ITS BEST
KEY FEATURES
More infoKEY FEATURES
• Mobile, powerful and compact single-shaft shredder with wet-running safety clutch
• 100% electric drive for maximum energy efficiency
• Three different cutting units for maximum flexibility
• Maximum material diversity for a variety of applications
• Homogeneous, defined output sizes from 30 to 350 mm
• High ease of maintenance and servicing
INPUT MATERIALS
More infoINPUT MATERIALS

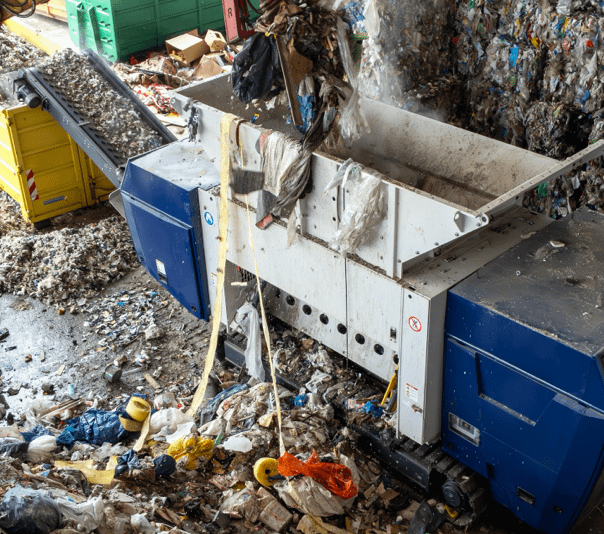

• C&I Waste
• Waste Wood
• Mattresses
• Carpets
• Window Frames

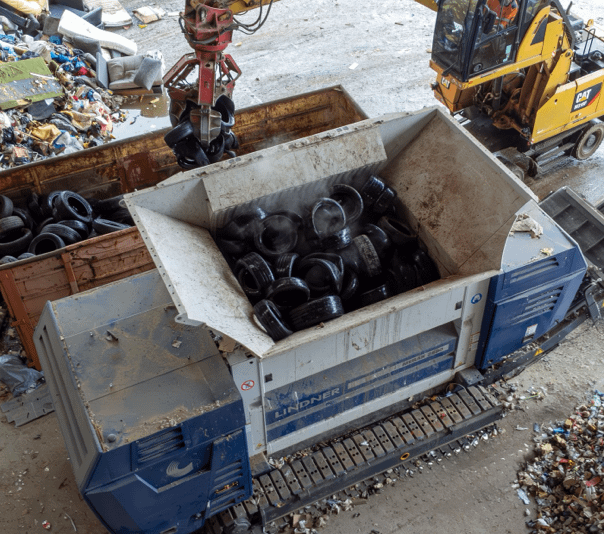

• Car Tyres
• Plastic Containers

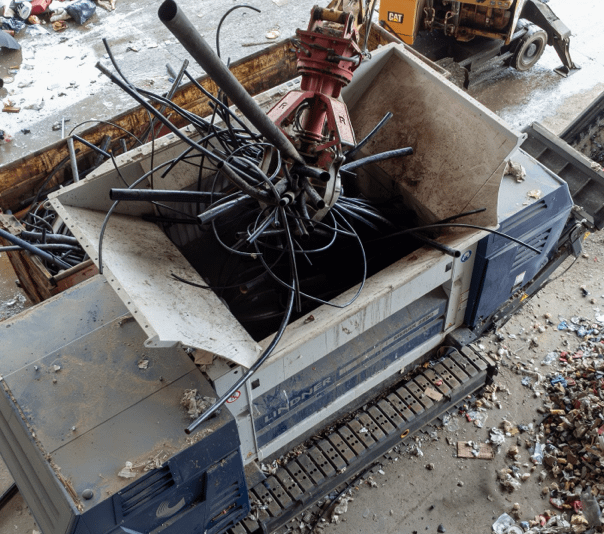

• Plastic Wrapping & Pipes
CUTTING SYSTEMS
More infoCUTTING SYSTEMS
Whether primary, universal or secondary shredding, the Lindner modular system with its different drive and cutting units combines a wide range of applications with an unrivalled variety of materials, always at the optimum operating point.
Equipped with a torque-controlled safety clutch, downtimes are minimised, protecting both the cutting unit and drive components.
The optionally available automatic belt tensioning system (ATB) also makes sure that the power is optimally transmitted at all times.

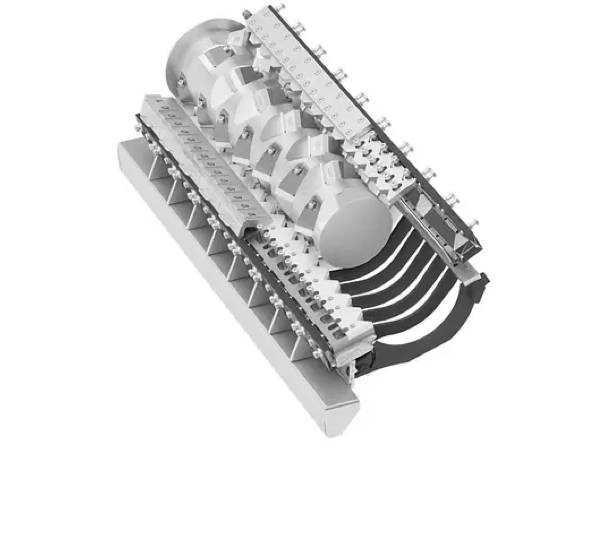

MERAK PRIMARY SHREDDING
More infoMERAK PRIMARY SHREDDING
The Merak primary shredding cutting system is specially designed for volume reduction and high throughputs and prepares materials optimally for downstream processes.
Paticle size: 250 – 350 mm

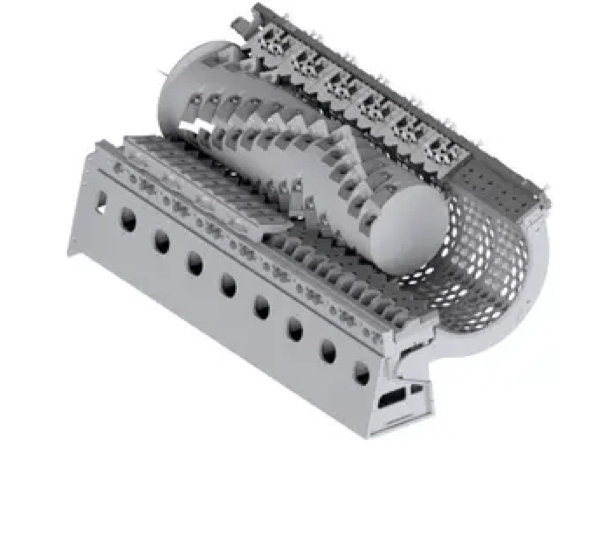

MERAK UNIVERSAL SHREDDING
More infoMERAK UNIVERSAL SHREDDING
The Merak universal cutting system was developed for primary shredding as well as for one-step processing of a wide variety of material streams to a defined output size.
The closely arranged rows of knives in combination with adjustable speeds ensure high throughput, efficiency and capacity to shred diverse materials and allow for different applications, in each case depending on the requirements and screen diameter.
Both the knives and the knife holders are screwable, so that the individual components can be replaced quickly and easily if necessary.
Particle size: 80 – 300 mm

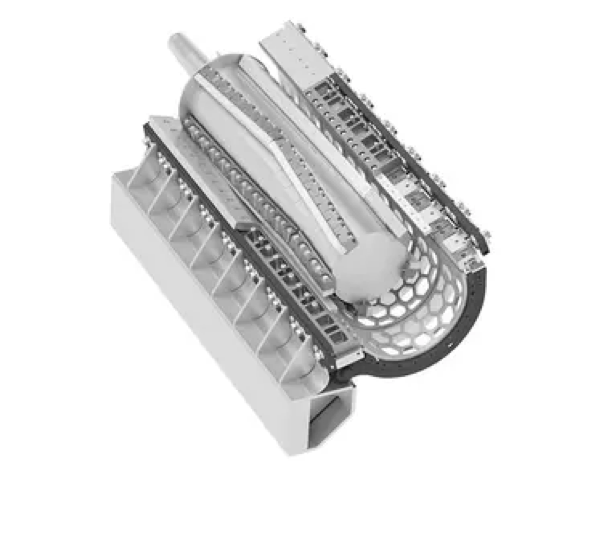

MERAK SECONDARY SHREDDING
More infoMERAK SECONDARY SHREDDING
The Merak secondary shredding cutting system is specially designed for small output sizes from 30 to 120 mm.
Depending on the application and screen size, this cutting unit is ideal for the secondary shredding of waste wood or the processing of industrial and commercial waste into medium-calorific substitute fuel and to fuel calciner’s.
Particle size: 30 – 120 mm
Lindner Merak Brochure
Find Your Ideal Shredding Solution, Speak to Our Experts
Looking for the right setup for your operation or need guidance on applications, throughput or particle size?
Our specialists are here to help. Whether you’re exploring the capabilities of the Merak 2800 or comparing shredding solutions, we’ll work with you to identify the best fit for your needs.
Call us today on 01706 838 246, or get in touch for expert advice, pricing, or to arrange a site visit.
You can also use the form to send your enquiry and a member of our team will be in touch shortly.
