Jupiter
- 1800
- 2200
- 3200
- 2200 HP
-
Alternative Fuels -
Plastics Recycling -
Waste Wood Processing -
The award winning Lindner Jupiter single-shaft primary shredder combines everything you need for efficient 24/7 operation: a powerful countershaft drive, a well-engineered machine design and high manufacturing quality. Undefeated by non-shreddables, our tried-and-tested technology ensures a long service life and low maintenance coupled with the necessary power to shred even the toughest materials, year after year and ton after ton.
DownloadsEnquire about Jupiter today
Make an enquiryGETS IT OFF THE GROUND.

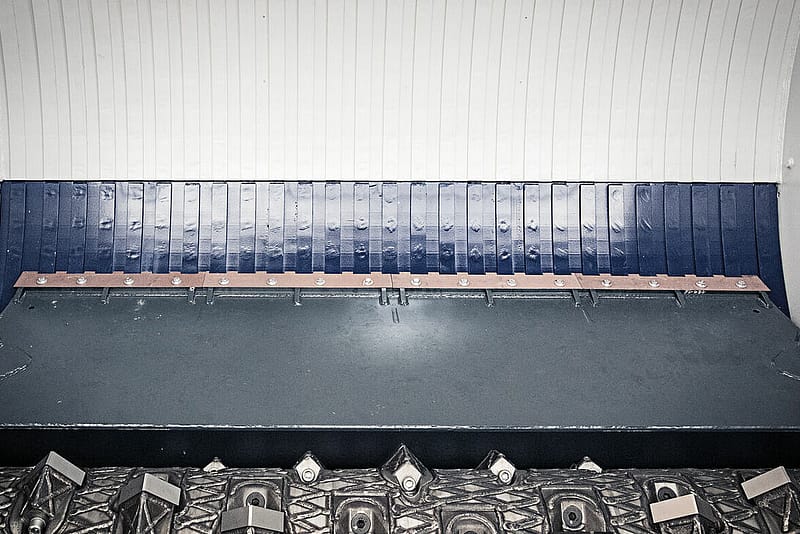

INTERNAL PUSHER
More infoINTERNAL PUSHER
Lindner’s proven internal pusher system has been refined through years of engineering expertise and real-world performance, delivering safe, efficient, and reliable material feeding. Its distinctive design is built to maximise throughput while minimising maintenance and operational disruption.
CONTINUOUS MATERIAL FLOW
Smooth, consistent feeding ensures uninterrupted shredding performance and maximum processing efficiency.
SAFE & EFFICIENT FEEDING
The fully internal construction allows for secure machine feeding while optimising material handling.
LOW MAINTENANCE OPERATION
With no guide elements required, the system reduces wear points and keeps maintenance demands to a minimum.
ANTI-JAM DESIGN
Additional comb and sealing bars help prevent blockages, ensuring reliable operation and uninterrupted productivity.

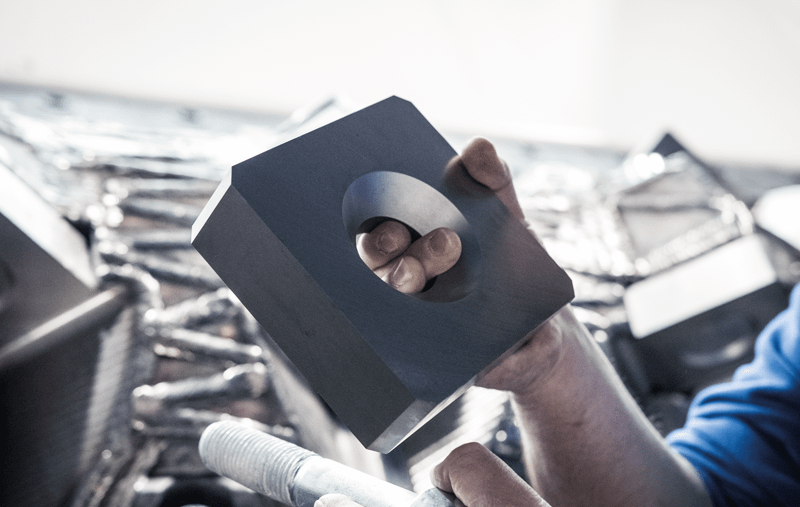

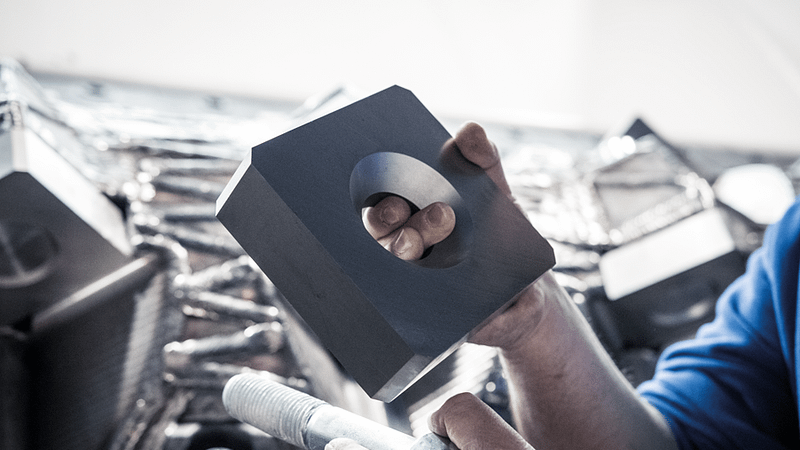

ROBUST SQUARE CUTTING SYSTEM
More infoROBUST SQUARE CUTTING SYSTEM

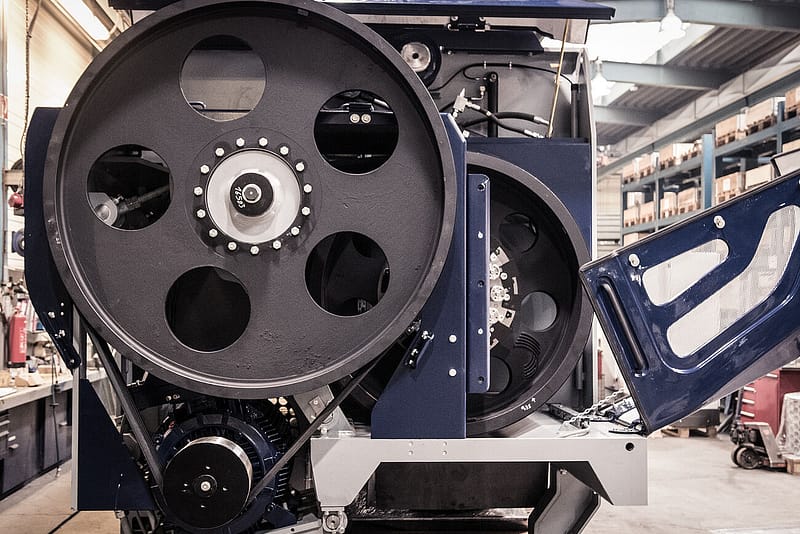

COUNTERSHAFT DRIVE
More infoCOUNTERSHAFT DRIVE
Smarter drive technology delivers greater efficiency and performance. The advanced countershaft drive system intelligently stores and releases rotational energy based on load demands, providing increased shredding power while reducing overall energy consumption.
MAXIMUM POWER FOR DEMANDING MATERIALS
Additional flywheel mass delivers extra torque and consistent power when processing heavy-duty and difficult waste streams.
GLOBAL PARTS AVAILABILITY
Built using easily replaceable standard components, ensuring fast parts access and simplified maintenance wherever you operate.

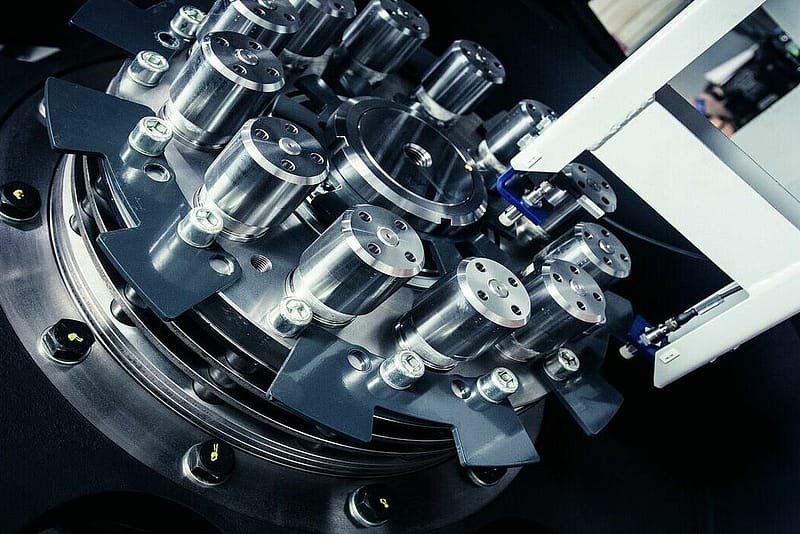

TORQUE-LIMITING SAFETY CLUTCH
More infoTORQUE-LIMITING SAFETY CLUTCH
The torque-limiting clutch provides reliable protection for the drive system by instantly disengaging in the event of blockages caused by foreign objects, preventing costly damage and downtime. In combination, highly accurate sensors ensure the machine is brought to a controlled and safe stop, protecting all key components.
OPTIMAL DRIVE SAFETY
Instant mechanical disengagement safeguards the drive unit from overload and impact damage.
CONTROLLED & SECURE SHUTDOWN
Robust sensor technology enables a safe, reliable power-down sequence for maximum equipment protection.

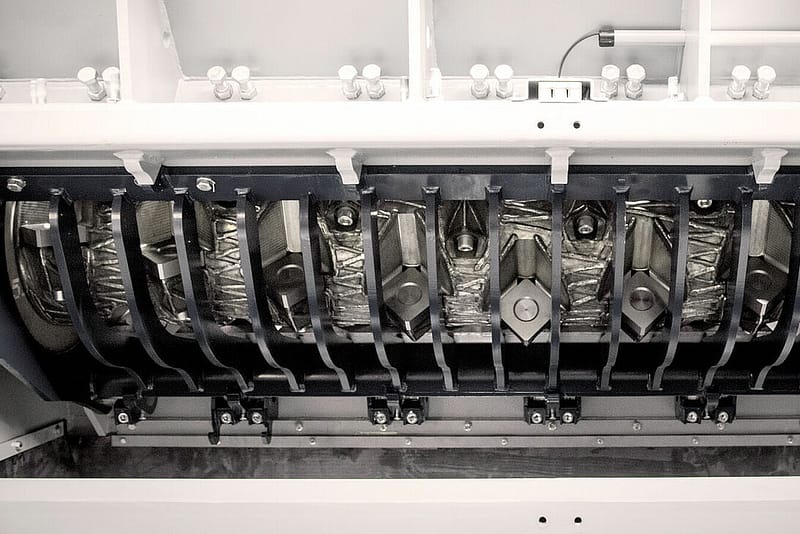

PLUG & GO SCREEN UNIT
More infoPLUG & GO SCREEN UNIT
The swivel-mounted, hydraulically operated screen unit provides fast, safe, and convenient access for maintenance and screen changes. With multiple mesh size options available, screens can be quickly replaced by a single operator, allowing the shredder output to be easily adapted to your required particle size.
FLEXIBLE OUTPUT CONTROL
Interchangeable screen units with a range of aperture sizes allow precise adjustment of final particle dimensions.
MAXIMUM OPERATING SAFETY
An electromagnetically locked access system ensures the screen area remains securely sealed during operation, fully protecting the cutting chamber.

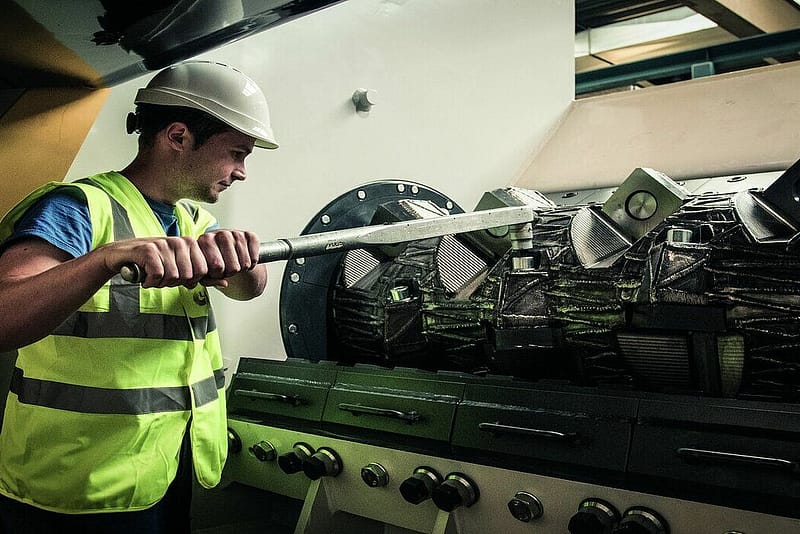

HYDRAULIC MAINTENANCE DOOR
More infoHYDRAULIC MAINTENANCE DOOR
The hydraulically operated, inward-opening maintenance door provides fast, safe, and controlled access to the cutting system. It enables efficient servicing and the quick removal of foreign objects while minimising material spillage and downtime.
FAST & CLEAN REMOVAL OF NON-SHREDDABLE MATERIALS
Position 2 allows quick access for the safe extraction of contaminants with minimal material loss.
CONVENIENT CUTTING CHAMBER ACCESS FOR MAINTENANCE
Position 3 provides easy, ergonomic access to the cutting system, simplifying inspection and servicing tasks.
Lindner Jupiter Brochure

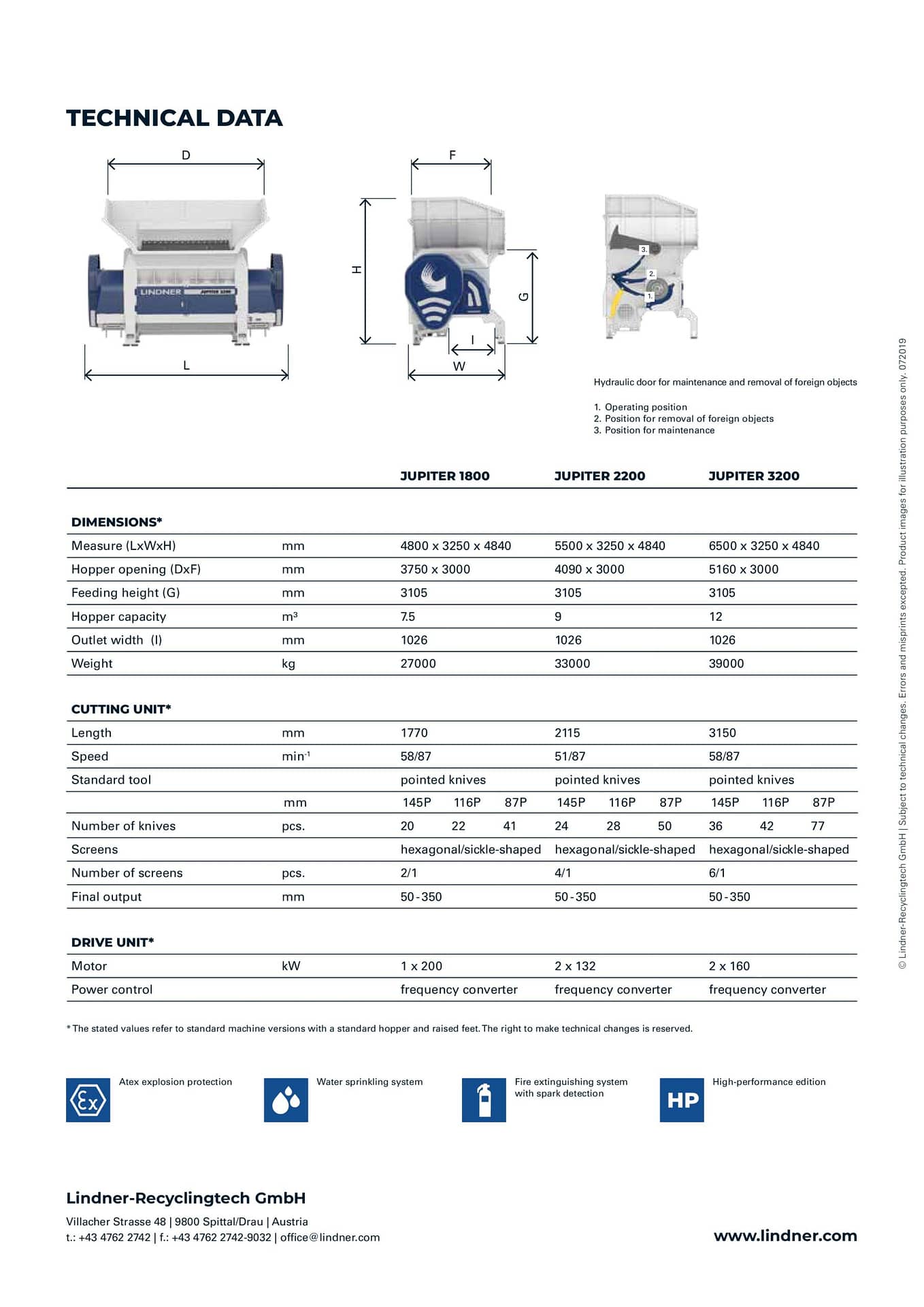

Technical Data
Mr Paul Lee,
Operations Manager
"I cannot say enough about the outstanding quality of service that Mach-Tech Services provides, from the initial sales process to the installation and commissioning of our Lindner Jupiter 3200 a year ago to the outstanding Aftersales services we have received since. Mach-Tech Services really do live up to their good name and deliver on all that they promised during the sales process".
Find Your Ideal Shredding Solution, Speak to Our Experts
Looking for the right setup for your operation or need guidance on applications, throughput or particle size? Our specialists are here to help.
Whether you’re exploring the capabilities of the Jupiter range or comparing shredding solutions, we’ll work with you to identify the best fit for your needs.
Call us today on 01706 838 246, or get in touch for expert advice, pricing, or to arrange a site visit.
You can also use the form to send your enquiry and a member of our team will be in touch shortly.
