Merak 2800 DT

DIESEL-HYDRAULIC DRIVE

A powerful diesel engine and a matched hydraulic system deliver reliable power transmission, even in demanding conditions. Rotor speeds reach up to 110 rpm.

NO MAINS POWER NEEDED
The Merak works independently of an external power supply, which makes it ideal for mobile and temporary sites.

PROTECTED DRIVE TRAIN
A wet-running, torque-controlled safety clutch protects the cutting unit and drive components and keeps downtime to a minimum.

INTERNAL PUSHER

An internal pusher feeds material steadily onto the rotor for consistent throughput.

CONSISTENT FEEDING
Steady feeding keeps the machine at its optimum operating point across different materials.

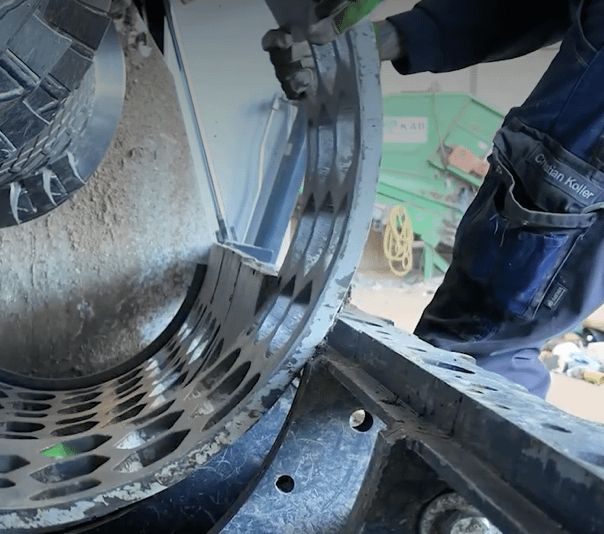

PLUG & GO SCREEN UNIT

The screen unit is quick to change, so the output size can be adapted to each job without long downtime.

DEFINED OUTPUT SIZE
The screen gives a homogeneous output size, with no need for a second shredding stage.

FAST CHANGEOVERS
Operators can switch between applications quickly on site.

TRACK DRIVE

The Merak 2800 DT sits on a tracked chassis, so it moves easily around a yard or between processing areas.

COMPACT AND MOBILE
The machine is powerful but compact, built to go where the material is.

MATERIAL OUTPUT & FE METAL SEPARATOR

Shredded material leaves via the discharge conveyor. An optional Fe metal separator removes ferrous metal from the output.

EASY MAINTENANCE
The machine is designed for easy servicing and maintenance access throughout.

CUTTING SYSTEMS

Three Cutting Systems, One Machine

Lindner’s modular system lets you match the cutting unit to the job, whether that’s primary, universal or secondary shredding. That keeps the Merak working at its optimum operating point across a wide range of materials.

Primary Shredding: 250 to 350 mm
Designed for volume reduction and high throughput, this unit prepares material for downstream processing.

Universal Shredding: 80 to 300 mm
This unit handles primary shredding and one-step processing of mixed material streams to a defined size. Closely arranged knife rows and adjustable speeds give high throughput. The knives and knife holders are bolted on, so they’re quick to replace.

Secondary Shredding: 30 to 120 mm
Built for small output sizes, this unit is ideal for secondary shredding of waste wood or producing medium-calorific SRF from C&I waste, including fuel for cement calciners.

OPTIONAL EQUIPMENT

Automatic Belt Tensioning (ATB)
Keeps power transmission at its optimum at all times

Water Sprinkling System
Reduces dust on site

Additional Wear Protection Package
Extends component life in abrasive applications

Fe Metal Separator
Recovers ferrous metal from the shredded output

INPUT & OUTPUT MATERIALS

C&I WASTE
Processed for SRF and alternative fuels

WASTE WOOD
For biomass and panel board

RAILWAY SLEEPERS
Shredded to a defined size

PLASTIC CONTAINERS
Size reduction for recycling

PLASTIC PIPES
Size reduction for recycling

PLASTIC ROLLS
Size reduction for recycling

MATTRESSES
Volume reduction and material recovery

CARPETS
Volume reduction and material recovery

WINDOW FRAMES
Separated for recycling

CAR TYRES
Shredded for recovery and fuel
